LKT16.7-480DD60

Description

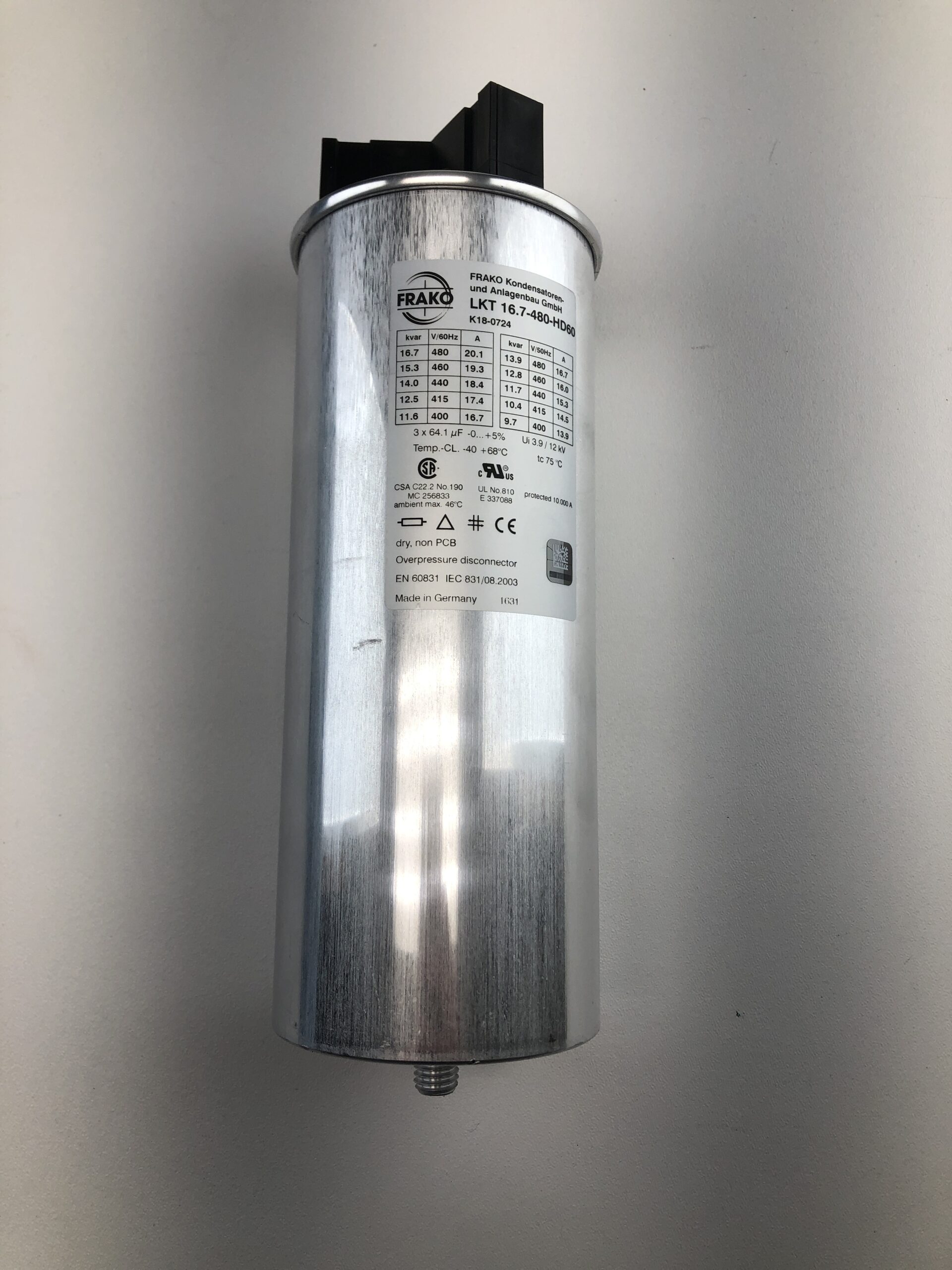

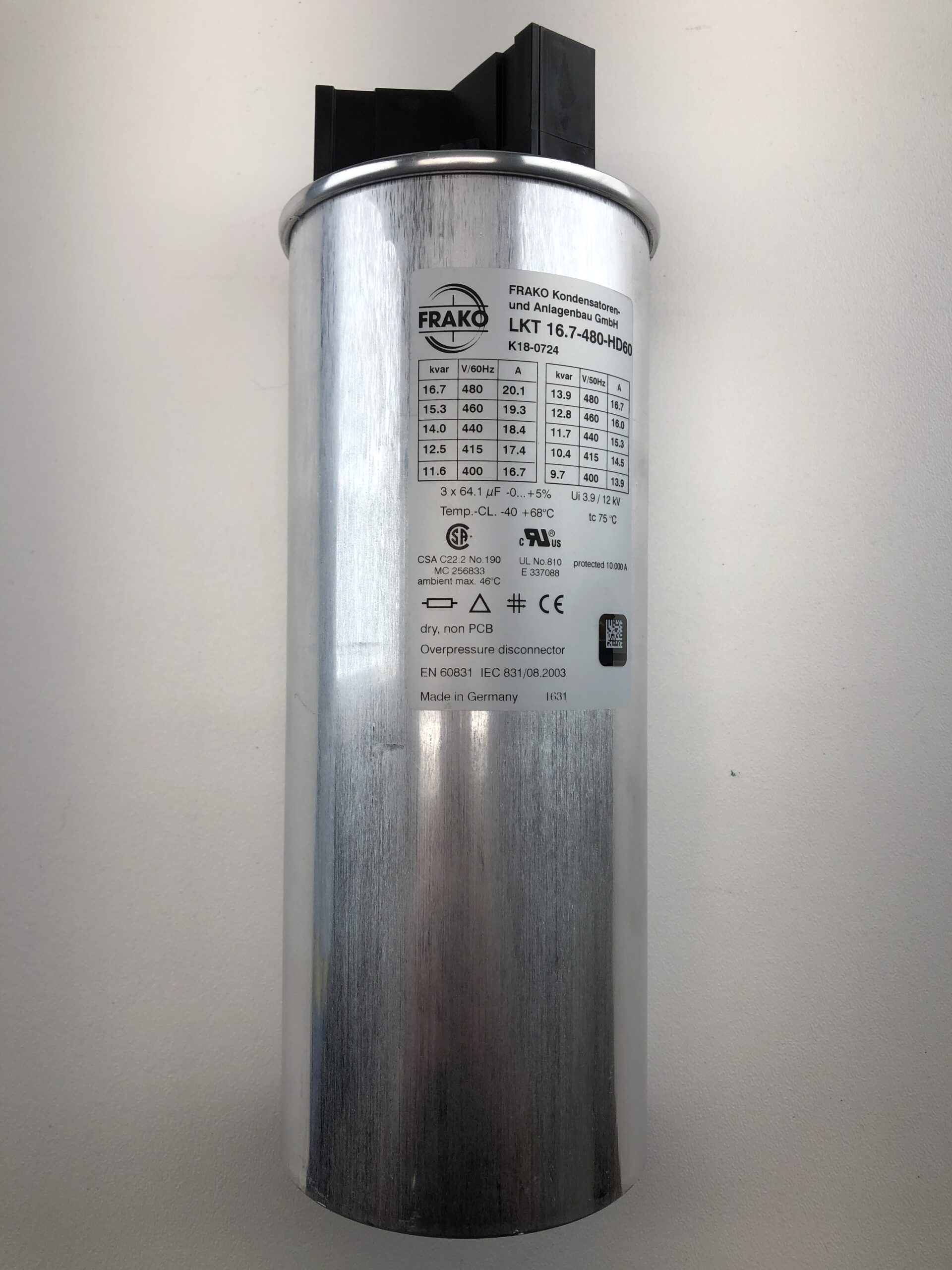

Frako 16.67 KVAR Power Factor Correction Capacitor designed to operate in high harmonic environments.

Frako Power Factor Correction capacitors utilize unique advanced technology and incorporate our exclusive triple safety feature. Frako is the first capacitor manufacturer to succeed in combining segmented capacitor film with self-healing and over-pressure disconnection. This exclusive technique significantly increases the reliability of capacitors in power factor and filter applications.

Application:
Frako capacitors are recommended for use in fixed or automatic power factor correction systems as well as harmonic filters. Frako holds registration certificates for ISO 9001 (quality system), ISO 14001 (environmental management system) and ISO 50001 (energy management system).

Features:

• Handles continuous current up to 150% (60Hz) / 2.7 (50Hz) times rated current
• Withstands inrush current up to 375 (60Hz) / 450 (50Hz) times rated current
• Self-healing type, segmented film technology plus overpressure disconnect
• Environment-friendly, dry type
• CO2 emission reduction
• Saves energy

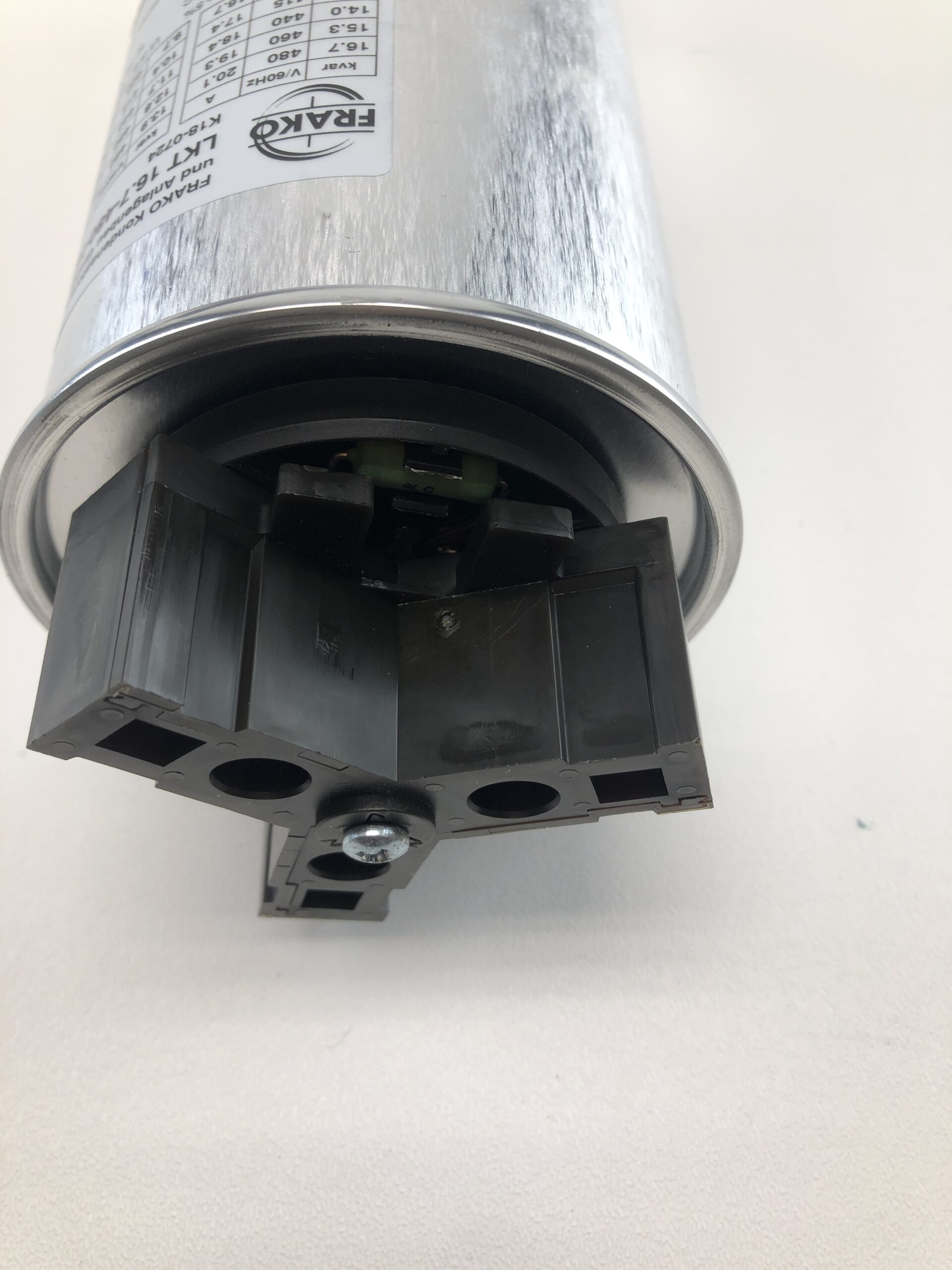

• Includes finger safe terminal (add 1.4” to height)

Compliance:

• UL 810 (up to 600 VAC, 60˚C ambient)
• CSA C22.2 No. 190 (up to 600 VAC, 46˚C ambient)
• IEC 60831 (up to 800 VAC, 60˚C ambient)

Ratings:

• UL/CSA: 0.9-30kVAR (60Hz); 208-600 VAC
• IEC: 0.9-30.9 kVAR (60Hz); 208-600 VAC
• UL/CSA: 0.7-25 kVAR (50Hz); 208-600 VAC
• IEC: 0.7-25.7 kVAR (50Hz); 208-600 VAC

Other ratings upon request / Maximum fault current: 10,000 amps

Capacitance Tolerance:
-5% / + 5% (Available to -1% / + 1%)

Power Loss:
Less than 0.5W/kVAR when measured at the connecting terminal (including discharge resistor). About 0.2 W/kVAR dielectric losses.

Ambient Temperature:

• UL/IEC: -40˚C up to +60˚C (-40˚F up to 154˚F)
• CSA: -40˚C up to +46˚C (-40˚F up to 114.8˚F)

Discharging after Disconnection:
In accordance with the National Electric Code (NFPA 70, Article 460), Canadian Electric Code (C22.2 No. 190-M1985) and IEC 60831, all Frako capacitors have integrated discharge resistors that guarantee terminal voltage will discharge to 50V or less within one minute after the capacitor is disconnected from the power source.
